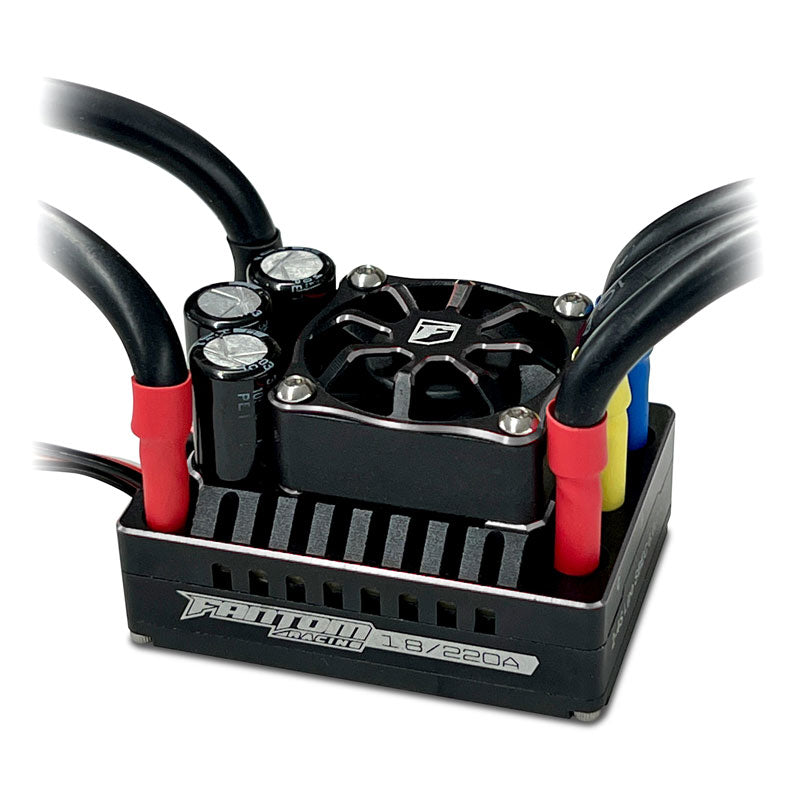

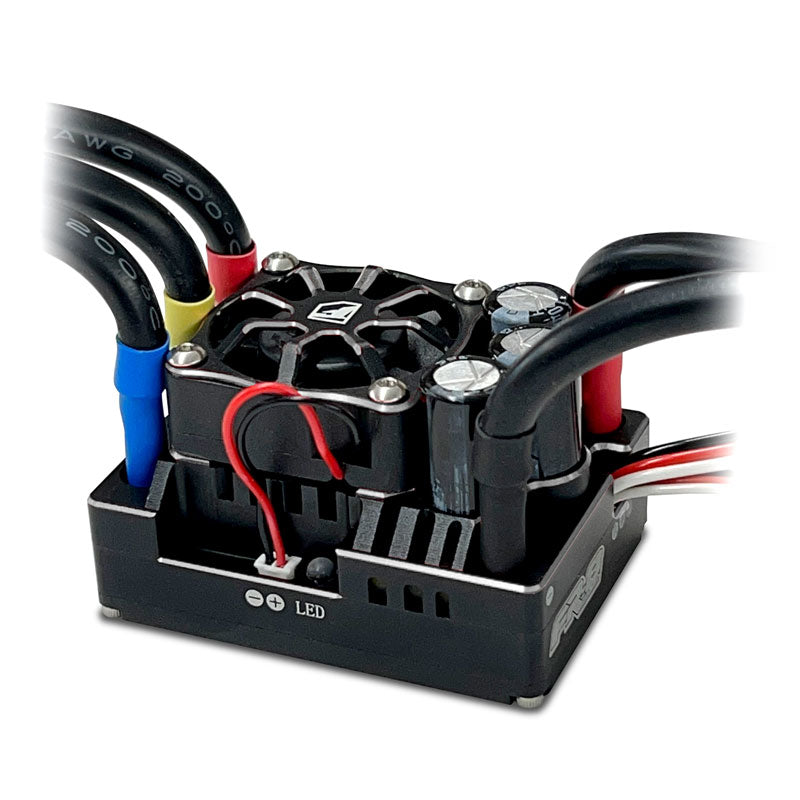

FR-8 2.0 PRO 220A Competition ESC with Built-In Bluetooth

Designed for the extreme demands of 1/8 scale competition, the Fantom FR-8 2.0 PRO delivers exceptional power, precision, and reliability. Built around a high-performance 32-bit processor and proprietary firmware, it provides incredibly smooth throttle response, powerful acceleration, and the tunability serious racers expect.

With built-in Bluetooth, the FR-8 2.0 PRO allows wireless programming and firmware updates directly from the free Fantom iOS and Android app—no programming card or external module required.

Highlights

• 220A Competition ESC for 1/8 Scale Racing
• Integrated Bluetooth for wireless programming and firmware updates
• Free Fantom iOS & Android App
• Real-time parameter adjustments—no ESC restart required
• High-performance 32-bit processor
• Enhanced throttle response, braking, acceleration, and driveability
• Expanded tuning options for every racing condition
• Built-in low voltage, thermal, and signal loss protection
• High-performance 34mm cooling fan with CNC aluminum fan guard

Included in the Box

• FR-8 2.0 PRO Competition ESC
• 34mm High-Performance Cooling Fan
• CNC Aluminum Fan Cover
• Two 165mm 10AWG ultra-low resistance input wires (pre-installed)
• Three 165mm 10AWG ultra-low resistance output wires (pre-installed)
• Three integrated Max Power capacitors
• Fantom branded heat shrink

GENERAL:

• RUNNING MODE – Forward/Brake, Forward/Brake/Reverse, Forward/Reverse
• LOW VOLTAGE CUTOFF – Disable, Auto, custom 3.0v to 11.1v (0.1v increments)
• ESC OVER-HEAT PROTECTION – Disable, 3 steps
• MOTOR ROTATION – Normal, Reverse
• DEADBAND – 12 steps
• BEC OUTPUT – 6v, 7.4v

THROTTLE:

• INITIAL POWER LIMITER – 30 steps
• THROTTLE RATE – 30 steps
• DRIVE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• RPM LOCK – 1% to 100% (1% increments)
• THROTTLE CURVE – Linear, Custom

BRAKE:

• INITIAL BRAKE – 1% to 20% (1% increments)
• DRAG BRAKE – 0% to 100% (1% increments)
• BRAKE FORCE – 0% to 100% (12.5% increments)
• INITIAL BRAKE RESPONSE – 20 steps
• BRAKE RATE – 20 steps
• BRAKE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• BRAKE CURVE – Linear, Custom

BOOST:

• BOOST TIMING – 0° to 64° (1° increment)
• BOOST TRIGGER LEVEL – 50 steps
• BOOST TRIGGER RATE – 10 steps

TURBO:

• TURBO TIMING – 0° to 64° (1° increment)
• START RPM – 8,000 RPM to 50,000 RPM (1000 RPM increments)
• TURBO DELAY – Instant, 0.05 seconds to 1 second (.05 second increments)
• ACTIVATION METHOD – Full Throttle, RPM, Full Throttle + RPM
• TURBO ON RATE – 10 steps
• TURBO OFF RATE – Instant, 10 steps

DATA:

• MINIMUM BATTERY VOLTAGE
• MAX ESC TEMP
• MAX MOTOR RPM
