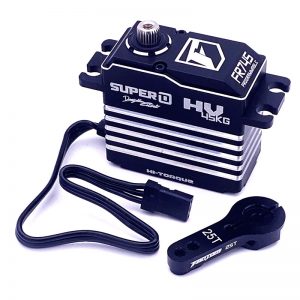

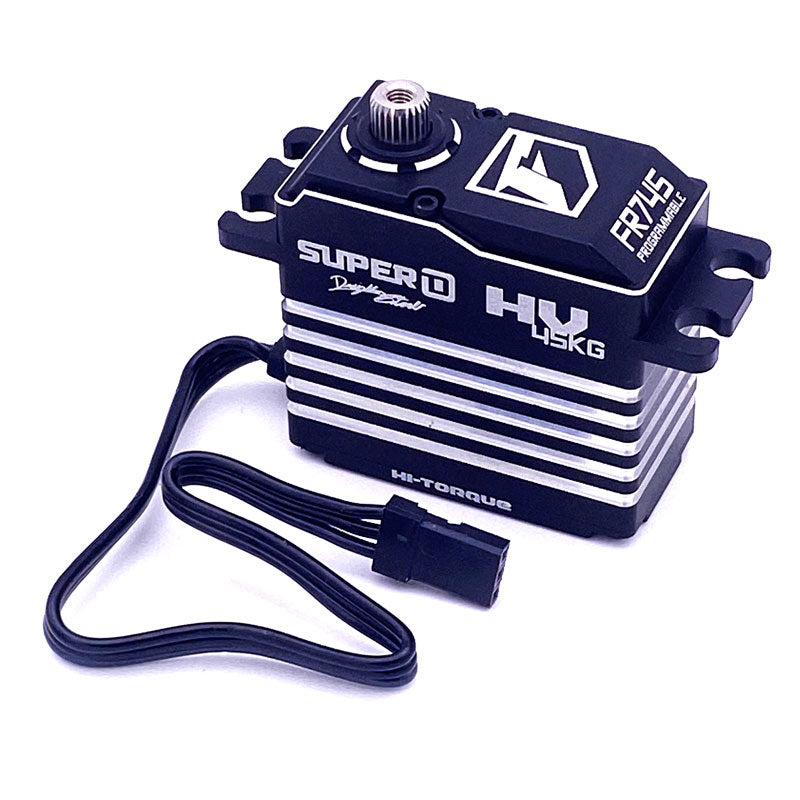

FR745 45KG – High Torque, HV, Standard Profile, Programmable, Digital Racing Servo

FR745 45KG – High Torque, HV, Standard Profile, Programmable, Digital Racing Servo

$159.99

Engineered for racers who demand exceptional precision, speed, and reliability, the Fantom FR745 combines a high-performance brushless motor, precision steel gears, a chrome steel output shaft, and a full CNC aluminum case to deliver outstanding steering feel, torque, and durability. Designed for both 1/10 and 1/8 scale racing, the FR745 is race-ready out of the box, with optional programming available through the Fantom SP V1.1 Servo Programmer (sold separately).

Features

Competition-grade standard profile HV digital servo
High-performance brushless motor
Precision steel gears
Chrome steel output shaft
Triple ball bearings
Full CNC aluminum cooling case
Water and dust resistant (not waterproof)
Fully programmable (programmer sold separately)
Includes 25T aluminum servo horn
Ideal for 1/10 and 1/8 scale on-road and off-road racing

Specifications

Operating Voltage: 4.8-8.4 V
Operating speed: 0.115sec/60° @ 6.0V
Operating speed: 0.100sec/60° @ 7.4V
Operating speed: 0.085sec/60° @ 8.4V
Stall Torque: 34 kg-cm (473 oz-in) @ 6.0V
Stall Torque: 39 kg-cm (542 oz-in) @ 7.4V
Stall Torque: 45 kg-cm (625 oz-in) @ 8.4V
Control System: Pulse Width Modulation Control
Refresh Rate: 333 Hz
Neutral Position: 1520uS
Signal Range: 500 to 2500 uSec
Dead Band: 2 uSec
Operating Travel: 180º ± 10°
Mechanical Angle: 220°
Gears: Steel
Case Material: Full Aluminum
Motor: Brushless
Size: L40mm x W20mm x H37.2mm (1.57 x 0.78 x 1.46 in)
Operating Temperature: 5° to 158º F.
Weight: 83g
