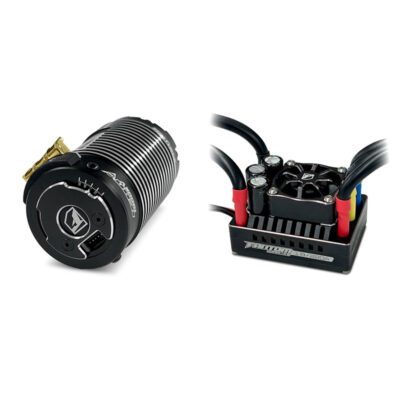

1950KV ICON v2 / FR-8 2.0 Pro ESC COMBO – NEW for 2023

Description

NEW 2023 – 1950KV ICON v2 1:8 SCALE BRUSHLESS RACING MOTOR

Introducing the latest advancement in 1:8 motor technology from Fantom Racing! The new ICON 1:8 motors provide the ultimate raw power demanded by the most serious competitors! Unmatched torque, followed by ultra-smooth delivery, mid to top! Designed for the highest level of competition, only from Fantom!

WHAT’S NEW WITH THE 2023 ICON v2 1:8 MOTOR…

• Improved End Plate / Can Durability
• Improved Rotor Centering in Can
• Improved Rotor Design – Provides smoother power delivery and better drive-ability

Features:

• Designed in the USA, we are proud to announce the all new ICON 1:8 Scale Series Racing Motors
• 4-Pole/8-Magnet Staggered Rotor for the Ultimate Combination of Super Smooth Power, Acceleration, Punch, and Torque
• High-Strength and Heat Resistant Magnet Formula
• Precision Dynamic Balanced Rotor
• Advanced Hall Sensing System Utilizes a Separate Magnet Ring that Insures a Clear Signal and Protects the Hall Sensing System from Other Signal Interference
• Precision CNC Machined Aluminum Alloy Case
• High Heat Resistant Pure Copper Wire
• Sensored and Sensorless Compatibility
• Replaceable Sensor Board
• Replaceable Rotor
• 2S to 6S LiPo/LiHV Voltage Range
• High RPM Precision Bearings
• Meets ROAR Specifications
• 318 grams

NEW 2023 – FR-8 2.0 Pro 1:8 Scale ESC, 2-4 Cell, 200A w/ Built-In Bluetooth

When we set out to release a new product, our goal has always been to offer our customers the very best products possible and it’s no exception with our new FR-8 2.0 Pro ESC.  We live, breath, eat and sleep R/C racing, and we love our customers to have an edge over their competition.  From our highly sought after brushless racing motors and batteries to our proprietary motor tuning tools, since 1980, racers have counted on us for the highest performance products in R/C!

To continue our tradition of excellence, countless hours have gone into R&D, to bring you a professional racing ESC, second to none in performance and value!  The heart of the FR-8 2.0 PRO is the high-performance 32-bit CPU and proprietary firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters you’ve come to expect from a pro racing ESC!

WHAT’S NEW WITH THE FR-8 2.0 PRO…

FEATURES:

• All R&D Done in the USA
• 1:8 Scale / 2-4 Cell / 220 Amp
• Specifically designed for the highest level of 1:8 scale racing
• 10awg, Ultra Low Resistance Wire
• CNC Machined Aluminum Case w/ Integrated Heat Sink
• Ultra-Low Resistance FET Board
• 3 Integrated Max Power Capacitors
• Heavy-Duty Solder Posts
• Precision Throttle & Brake Frequency Adjustment
• 34mm Fan w/ Aluminum Fan Cover
• Ultra Precision Throttle, Brake, and Punch Control
• Built-in Bluetooth allows programming the parameter settings and firmware upgrades via Apple or Android App HERE
• ROAR Approval Pending

SPECIFICATIONS:

• Continuous Current: 220 Amps
• 32-bit high-performance CPU
• Battery Input: 2-4 cell LiPo
• BEC Output: 6.0V, 7.4V / 6A (Switch BEC)
• Dimensions: (L) 55.2mm x (W) 40.2mm x (H) 36.5mm
• Weight without wiring and fan: 155 grams
• Programmable with our free Apple or Android App
• Sensored: Yes
• Sensorless: Compatible but not optimal
• Motor Limit: 4S LiPo/ 3000KV for 4274 size

INCLUDED IN BOX:

• FR-8 2.0 PRO ESC
• 30mm Fan
• Machined Aluminum Fan Cover
• 2 x 165mm Input Wires – 10awg, Ultra-Low Resistance Wire (pre-soldered on ESC)
• 3 x 165mm Output Wires – 10awg, Ultra-Low Resistance Wire (pre-soldered on ESC)
• 3 Integrated Max Power Capacitors
• Shrink Tube w/ Fantom logo

RECOMMENDED APPLICATIONS:

• 1/8 Scale Off Road/On Road, Suitable for Highest Level of Competition Racing

PROGRAMMABLE PARAMETERS:  UPDATED PARAMETER INFO COMING SOON!

GENERAL:

• RUNNING MODE – Forward/Brake, Forward/Brake/Reverse, Forward/Reverse
• LOW VOLTAGE CUTOFF – Disable, Auto, custom 3.0v to 11.1v (0.1v increments)
• ESC OVER-HEAT PROTECTION – Disable, 3 steps
• MOTOR ROTATION – Normal, Reverse
• DEADBAND – 12 steps
• BEC OUTPUT – 6v, 7.4v

THROTTLE:

• INITIAL POWER LIMITER – 30 steps
• THROTTLE RATE – 30 steps
• DRIVE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• RPM LOCK – 1% to 100% (1% increments)
• THROTTLE CURVE – Linear, Custom

BRAKE:

• INITIAL BRAKE – 1% to 20% (1% increments)
• DRAG BRAKE – 0% to 100% (1% increments)
• BRAKE FORCE – 0% to 100% (12.5% increments)
• INITIAL BRAKE RESPONSE – 20 steps
• BRAKE RATE – 20 steps
• BRAKE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• BRAKE CURVE – Linear, Custom

BOOST:

• BOOST TIMING – 0° to 64° (1° increment)
• BOOST TRIGGER LEVEL – 50 steps
• BOOST TRIGGER RATE – 10 steps

TURBO:

• TURBO TIMING – 0° to 64° (1° increment)
• START RPM – 8,000 RPM to 50,000 RPM (1000 RPM increments)
• TURBO DELAY – Instant, 0.05 seconds to 1 second (.05 second increments)
• ACTIVATION METHOD – Full Throttle, RPM, Full Throttle + RPM
• TURBO ON RATE – 10 steps
• TURBO OFF RATE – Instant, 10 steps

DATA:

• MINIMUM BATTERY VOLTAGE
• MAX ESC TEMP
• MAX MOTOR RPM

RECOMMENDED APPLICATIONS:

• 1/8 Scale Off Road/On Road, Suitable for Highest Level of Competition Racing
